PRODUCTS > IPH750 |
| |
|

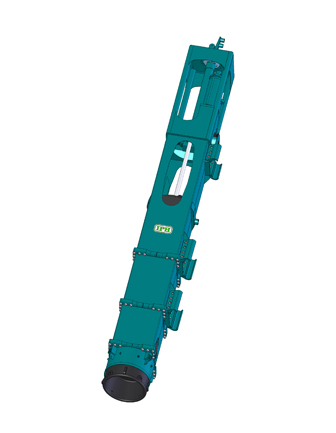

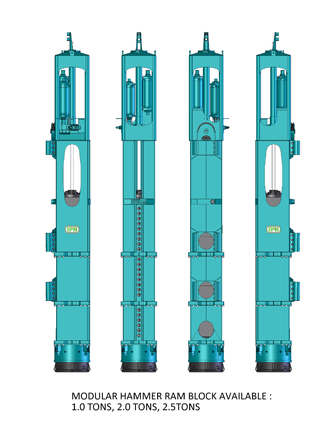

IPH750 Hydraulic Hammer is modular ram block designed, it has series of hammer ram weight of 1.0 tons, 2.0 tons and 2.5 tons. Different hammer weight can be change to fit job requirement. It can drive piles up to 350 x 350 mm sq. and diameter 400 mm.
|
| |
| Hammer Details : |
| Ram Weight |
kg |
7500 |
| Drive Cap Weight |
kg |
540 |
| Total Hammer Weight |
kg |
9120 |
| Max. Stroke |
mm |
1000 |
| Max. Energy |
kNm |
30 |
| Blow Rate (blows / min) |
|
| at Min. Stroke |
|
100 |
| at 600mm Stroke |
|
60 |
| at Max. Stroke |
|
48 |
| Working Pressure |
bar |
260 |
|
|
|
