The IPH200 Hydraulic Piling Hammer and Rig is designed to deliver efficient, flexible, and reliable performance across a wide range of piling work. Built with practical features and an excavator-mounted system, it reduces the need for heavy equipment and simplifies mobilisation and transportation. Its hydraulic-powered operation, combined with patented and patent-pending components, ensures smooth handling, improved safety, and consistent results across different site conditions.
- Can handle pile length up to 12 meters.
- No heavy crane required during mobilization and demobilization.
- No dismantling of parts during transportation.
- Mounted on an excavator-type superstructure.
- No power pack is necessary unless needed; hydraulic power is sourced from the superstructure's hydraulic system.
- Easy handling and flexibility.
- Hydraulic brakes for hammer and pile handling operations.
- Patent pending for ball joint, hammer cylinder, hammer ram, and connectors, as well as the hydraulic clutch.
Hydraulic Hammer
| Hydraulic Hammer Type | 2.5 tons | ||
|---|---|---|---|
| Hammer Total Weight | W1 | kg | 3580 |
| Ram Weight | kg | 2500 | |
| Drive Cap Weight | kg | 274 | |
| Max. Stroke | mm | 700 | |
| Min. Stroke | mm | 100 | |
| Max. Energy | kNm | 17 | |
| Blow Rate | bpm | 40 | |
| Working Pressure | bar | 160 | |
| Max. Driven Pile Size | mm | RC Pile: 200 x 200 | |
| Max. Driven Pile Length | m | 12 | |

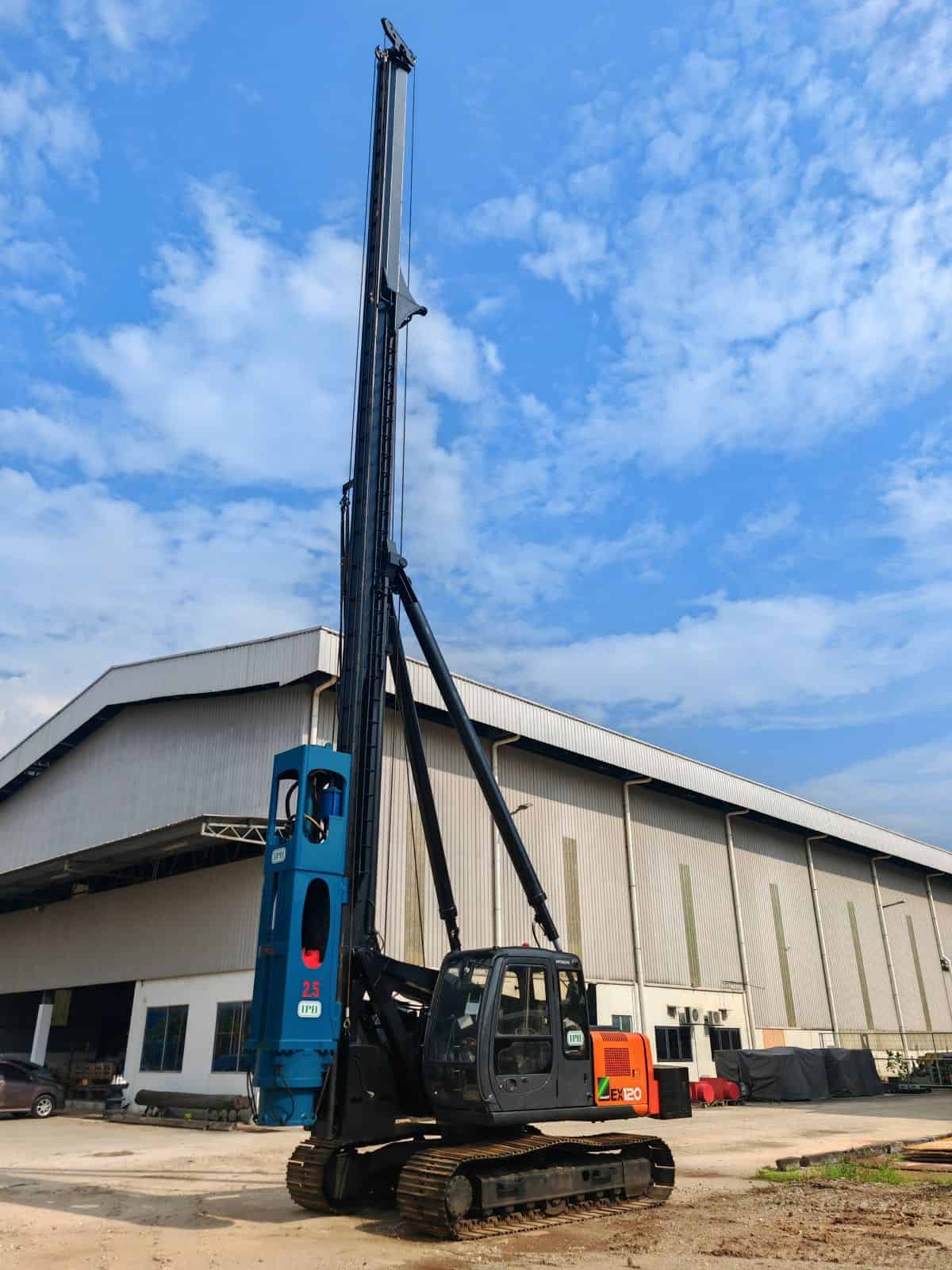

2.5 Tons – Hitachi ZX120 configuration is designed to deliver stable and efficient piling performance for small to medium projects. With a maximum pile length of up to 12 metres and support for RC piles up to 200 x 200 mm, it provides reliable capability for common foundation works.
Equipped with a hydraulic hammer weighing approximately 3,580 kg and a 2,500 kg ram, this model delivers consistent driving energy with a maximum stroke of 700 mm. Its operating pressure of 160 bar and blow rate of up to 40 bpm ensure steady and controlled pile driving.
Mounted on the Hitachi ZX120 superstructure, the system provides a balanced, practical setup for site operations. Its total weight and compact transport dimensions make it easier to mobilise, making it suitable for projects that require efficient handling and dependable performance.
